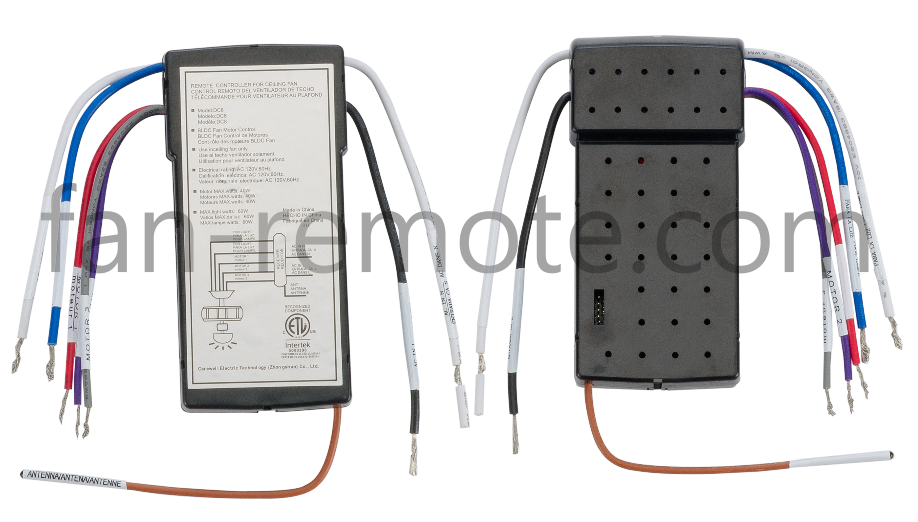

↑ Click this icon to see DC8
photos(front and back)

→ DC8 SIZE

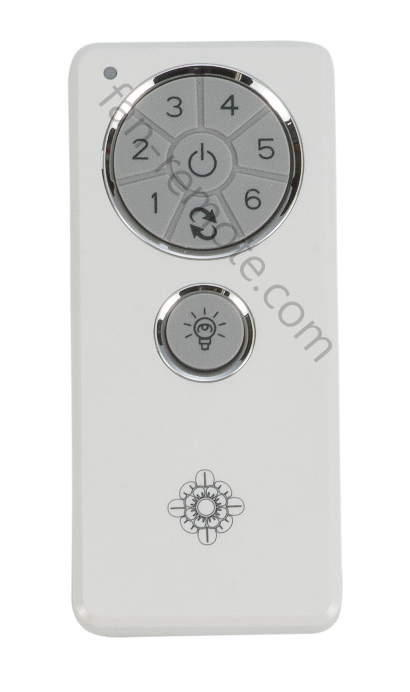

→ Transmitter Fan - DC1

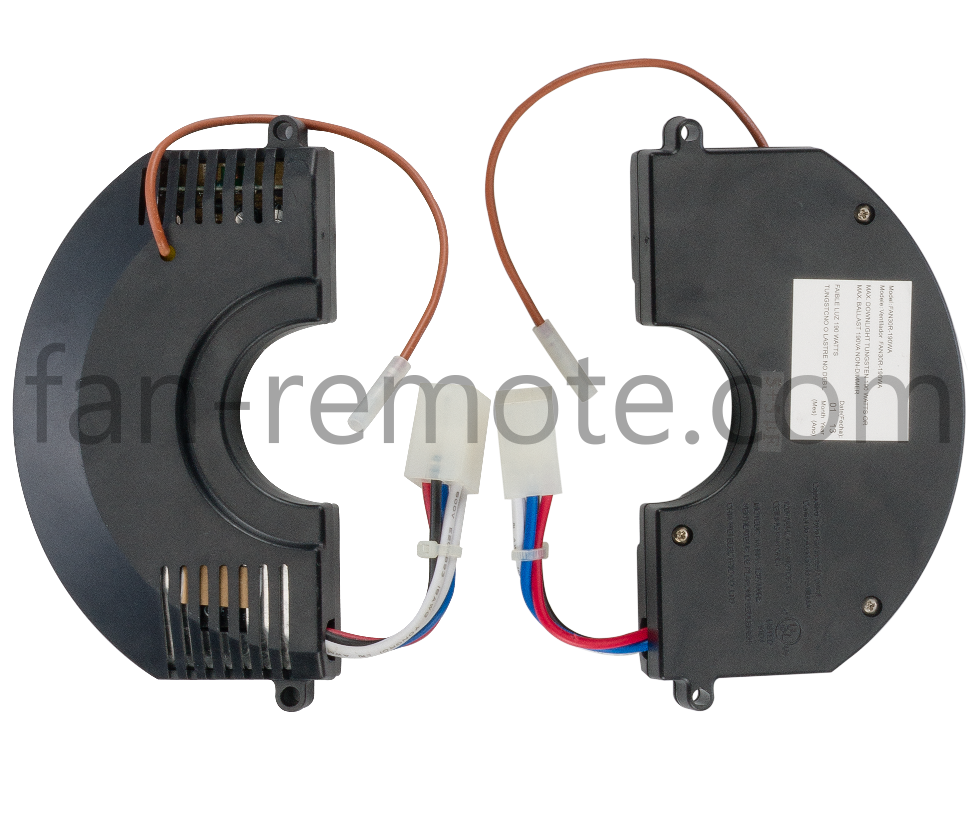

1. Fan Receiver DH8 & Transmitter DH1 can be easily assembled (DIY) at home.
2. Our Ceiling Fan Remote Controls are UL, CE, FCC approved.
3. We are proud to manufacture for major brands.


4. Welcome OEM
  • The Transmitter has 16 different code combinations.
  • Keep pressing the button learn key in excess of 3 second it becomes a LEARN status.The receiver can remember the last codes status .The LED light flash two times.
  • There are 9 buttons on The Transmitter.
  • 1- 6 key - for fan speed control.
        REV key - for fan Reverse.
        OFF key – for fan speed off.
        LIGHT key – for LED light brightness dimmer and off.
  • Optional Wall Mounting for Transmitter Holder.
  • The Transmitter uses TWO 1.5 volt battery.
    		•

    ＊ Please contact us for detail information ＊

    Notice:
    1. Must be used with DC Motor ceiling fan.
    2. Electrical rating:

    120V ; 60Hz ; 3.5A ; 303.9MHz
    MAX. DC Motor Watts : 40
    MAX. LED Light Watts: 60 (LED only)
