↑ Click this icon to see 30R
photos(front and back)

→ 30R SIZE

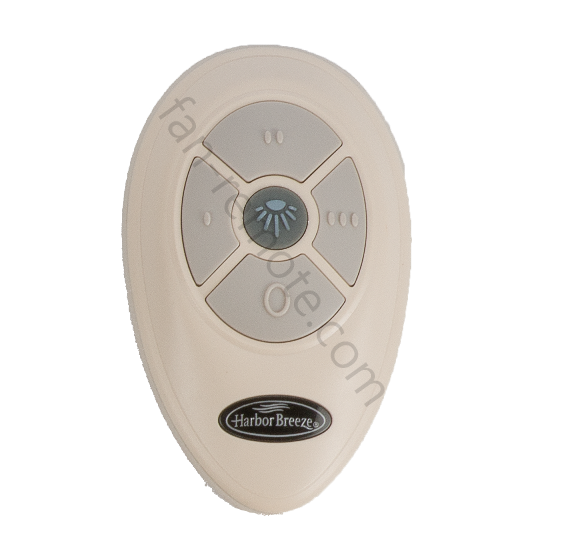

→ Transmitter Fan - 35T


1. Fan Receiver 30R & Transmitter 35T can be easily assembled (DIY) at home.
2. Our Ceiling Fan Remote Controls are UL, CE, FCC approved.
3. We are proud to manufacture for major brands.


4. Welcome OEM
  • The Transmitter has 16 different code combinations.
  • Keep pressing the button learn key in excess of 3 second it becomes a LEARN status. The receiver can remember the last codes status .The light flash two times.
  • There are 5 buttons on The Transmitter.
        HI (l) key - for fan high speed.
        MED (ll) key – for fan medium speed.
        LOW (lll) key – for fan low speed.
        OFF key – for fan speed off.
        LIGHT key – for light brightness dimmer and off.
  • Optional Wall Mounting for Transmitter Holder.
  • The Transmitter uses one 12 volt battery.
    		•

    ＊ Please contact us for detail information ＊

    Notice:
    1. Must be used with ceiling fan.
    2. Electrical rating:

    120V ; 60Hz ; 3.5A ; 303.9MHz
    MAX. Motor Amps: 1.0
    MAX. Light Watts: 190(incandescent only)
