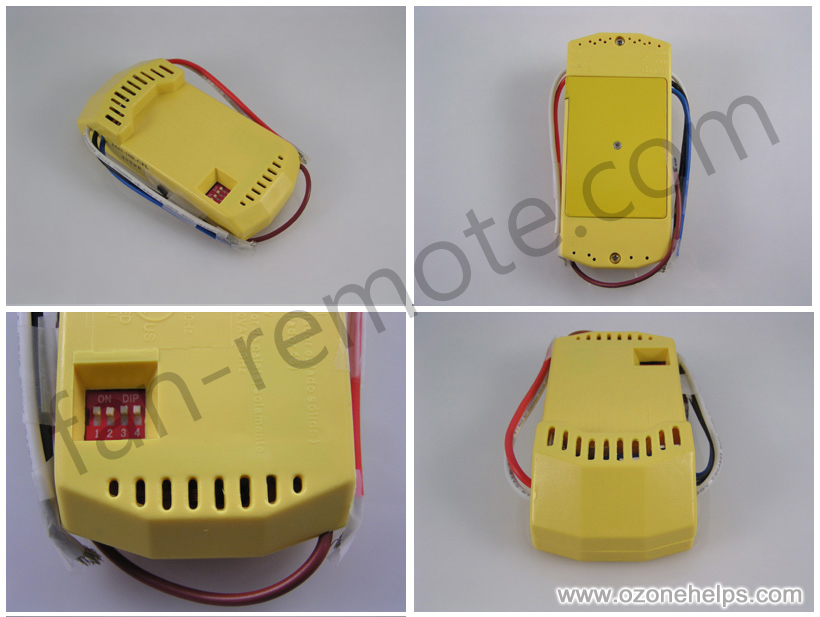

↑ Click this icon to see 18R photos

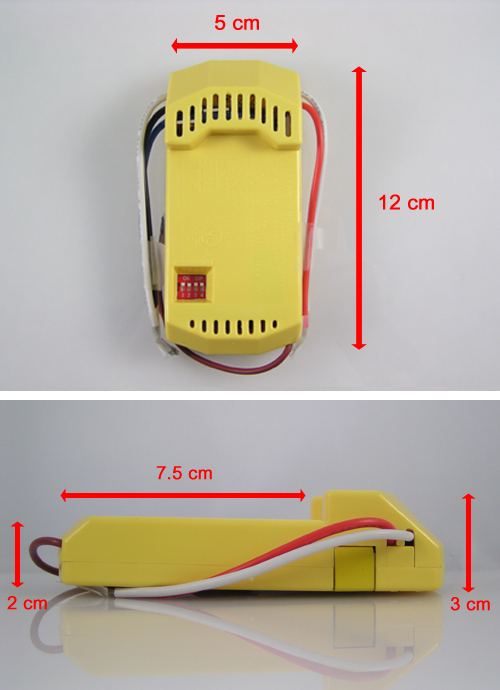

→ 18R SIZE

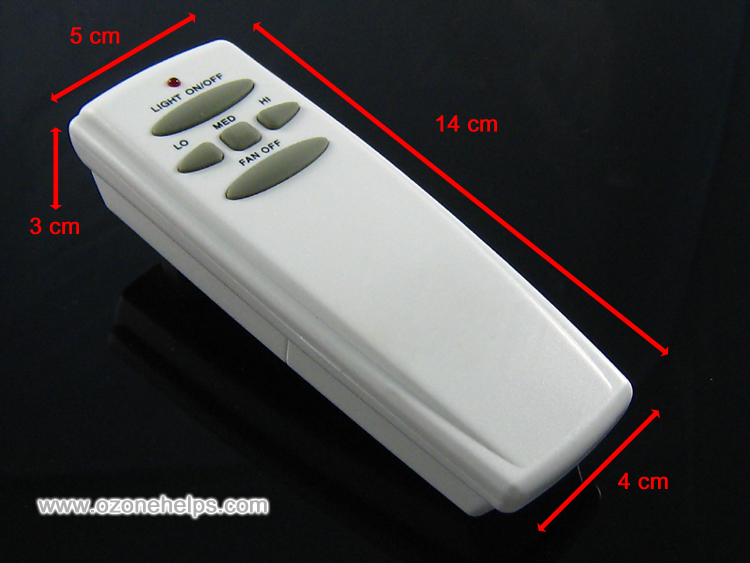

→ Transmitter Fan - HD5

1. Fan Receiver 18R & Transmitter HD5 can be easily assembled (DIY) at home.
2. They are designed to separately control your ceiling fan speed and light brightness. Work with 18R or 28R.
3. Our Ceiling Fan Remote Controls are UL, CE, FCC approved.
4. We are proud to manufacture for major brands.


5. Welcome OEM
  • The Receiver has 16 different code combinations.
  • There are 5 buttons on The Transmitter.
        HI key - for fan high speed.
        LOW key – for fan low speed.
        OFF key – for fan speed off.
        LIGHT key – for light brightness dimmer and off.
  • Optional Wall Mounting for Transmitter Holder.
  • The Transmitter uses one 9 volt battery.
    		•

    ＊ Please contact us for detail information ＊

    Notice:
    1. Must be used with ceiling fan.
    2. Electrical rating:

    120V 60Hz 3.5A
    MAX. Motor Amps: 1.0
    MAX. Light Watts: 300(incandescent only)     		220V 50Hz 1.8A
    MAX. Motor Amps: 0.5
    MAX. Light Watts: 300(incandescent only)
